Power Relays

Relay Type EX1 EX2
Mounting Height (mm) 14.2max
Mounting Area (mm x mm) 8.0 x 12.6 12.6 x 14.1
Contact Form 1c 1cx2
Maximum Contact
(Running Specification)		 Power window motor (Locked)
14VDC-25A, 1×105 operations
Power window motor (Free)
14VDC-25/5A, 1×105 operations
Features
  • Single Relay
  • Small Mounting area
  • Light weight
  • Twin Relay
  • Small Mounting area
  • Light weight
Coil (Operating Power) 900 mW 960 mW
Coil (Nominal Voltage) 12 V

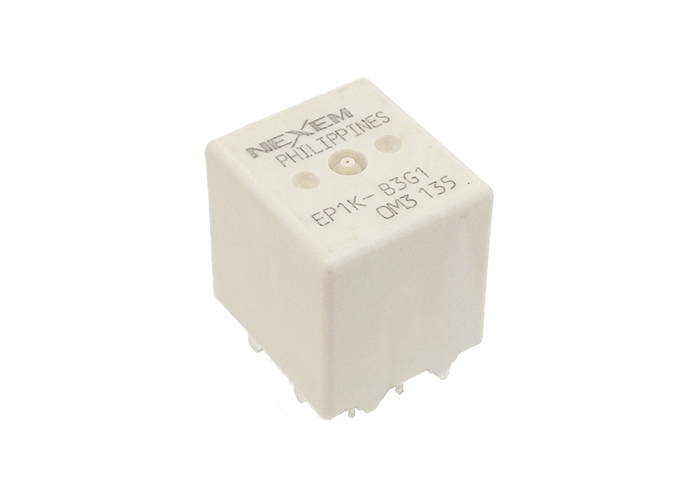

Relay Type EP1 EP1K EP2
Mounting Height (mm) 16.5max 17.5max 16.5max
Mounting Area (mm x mm) 16.7 x 15.1 16.7 x 15.1 16.7 x 24.3
Contact Form 1c 1cx2
Maximum Contact
(Running Specification)		 Power window motor (Locked)
14VDC-25A, 1×105 operations
Power window motor (Free)
14VDC-25/5A, 1×105 operations
Features
  • Single Relay
  • Small Mounting area
  • Single Relay
  • Small Mounting area
  • High carrying current
  • High heat resistance
  • Twin Relay
  • Small Mounting Area
  • Separate or Hbridge Connection
Coil (Operating Power) 480 mW, 640 mW 640 mW 480 mW, 640 mW
Coil (Nominal Voltage) 12 V


Relay Type ET1 ET2
Mounting Height (mm) 11.0max
Mounting Area (mm x mm) 13.3 x 14.5 13.3 x 22.5
Contact Form 1c 1cx2
Maximum Contact
(Running Specification)		 Power window motor (Locked)
14VDC-20A, 1×105 operations
Power window motor (Free)
14VDC-20/3A, 1×105 operations
Features
  • Single Relay
  • Low Profile
  • Twin Relay
  • Hbridge Connection
  • Low Profile
Coil (Operating Power) 640 mW
Coil (Nominal Voltage) 12 V


Relay Type EL1 EM1
Mounting Height (mm) 17.8max 16.8max
Mounting Area (mm x mm) 12.9 x 14.9 12.9 x 14.9
Contact Form 1c 1u
Maximum Contact
(Running Specification)		 Resistance
14VDC-40A, 1×105 operations
Inductance (0.5mH)
14VDC-30A, 1×105 operations		 Lamp 14VDC-120A/ 14A,
1×105 operations
Features
  • Single Relay
  • Large capacity
  • Small mounting area
  • Suitable for Inductive load
  • High heat resistance
  • Single Relay
  • Large capacity
  • Small mounting area
  • Suitable for lamps, CR load
  • High heat resistance
Coil (Operating Power) 640 mW
Coil (Nominal Voltage) 12 V


Relay Type EU1 EU2
Mounting Height (mm) 9.0max 8.0max
Mounting Area (mm x mm) 14.5(12.7) x 11.5 14.5(12.7) x 21.0
Contact Form 1c 1cx2
Maximum Contact
(Running Specification)		 Power window motor (Locked)
14VDC-25A, 1×105 operations
Power window motor (Free)
14VDC-25/5A, 1×105 operations
Features
  • Single Relay
  • Large capacity
  • Small mounting area
  • Suitable for Inductive load
  • High heat resistance
  • Relay
  • Large capacity
  • Small mounting area
  • Suitable for lamps, CR load
  • High heat resistance
Coil (Operating Power) 960 mW 640 mW
Coil (Nominal Voltage) 12 V


Relay Type HX1
Mounting Height (mm) 16.3max
Mounting Area (mm x mm) 9.7 x 14.6
Contact Form 1c, 1a
Maximum Contact
(Running Specification)		 1c:Power window motor
16VDC-30 A, 1×105 operations
1a:Resistance
16VDC-30A, 1×105 operations
Features
  • Single Relay
  • Large capacity
  • Small mounting area
  • Suitable for Inductive load
  • High heat resistance
Coil (Operating Power) 640 mW
Coil (Nominal Voltage) 12 V


Relay Type AX1 AX1S
Mounting Height (mm) 9.0max 21.0max
Mounting Area (mm x mm) 16.2 x 21.4
Contact Form 1c,1a
Maximum Contact
(Running Specification)		 1c:Resistance
N/C 250Vac-Making 25A/ Carrying 32A/Breaking 5A, 1×105 operations		 1c:Resistance
N/O 250Vac-16A, 1×104 operations,N/C 250Vac-Making 5A /Carrying 16A/Breaking 5A, 1×104 operations
1a:Resistance
N/O 250Vac-Making 25A/ Carrying 32A/Breaking 25A, 1×104 operations		 1a:Resistance
N/O 250Vac-16A, 1×104 operations
Features
  • 32A Single Relay
  • High dielectric strength
  • Small mounting area
  • High heat resistance
  • 16A Single Relay
  • High dielectric strength
  • Small mounting area
  • High heat resistance
Coil (Operating Power) 640 mW 1200 mW
Coil (Nominal Voltage) 12 V
